Fingerprint Time Attendance - Face Identification - RFID - Mifare

Solution X302-S

Today best of Attendance Machine and Door Access Control with Fingerprint Sensor. Integrated with a full colour 3 inch TFT LCD which able to display employee's Photo, USB Port for downloading data by Usb FlashDisk, Alarm function for detecting door opened by force or unclosed door, SMS message feature, web server, Scheduled Bell, Wiegend Port, Internal Litium Battery, Timezone, Workcode, and 4 function key. Widely technology support of it brings out its capability to solve many of company's need and factory which in need of complex, global, and integrated solution.


SPESIFICATION
With detailed data :

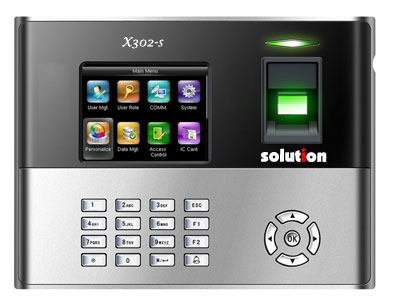

1. Hardware Photo:


2. Brand : Solution
3. Type : X302-S
4. Features :

• Access Control (AC) : 1 Relay Output 2A 12V
• AC Facilities : 50 Time Zones, 5 Grouping, 10 Combination.
• A well proven fingerprint technology that able to collect even the most problematic fingerprint template.
• Standalone, No need computer when operate
• User Capacity : 10.000 Fingerprint
• Log transaction capacity : 200.000 Transaction
• PC Communication Type : TCP/IP (RJ45), RS232/RS485, USB Cable, USB Disk
• Response Time : <= 1 seconds
• Matching Type : 1:1 and 1:N
• Standard Features: TFT LCD Full Color 3 Inch, Internal Litium Battery, T9 Input, USB Flash Disk, Web Server, Door Controller, Alarm Function, Scheduled Bell, SMS Message, Timezone, Workcode, 4 FKey, etc
• Weigend Port: for additional Fingerprint/RFID connection.
• LCD and Speaker built-in for authentication signal
• SOFTWARE INCLUDE, Attendance logs can be downloaded to PC, so you can print any kind of attenandce reports, and also can be used for calculating your employees' salary calculation based on your company's need.

With features :
1. Employees management
2. Shifts/schedules management (Support multi-shift for factory)
3. Calculation for Late, Leave Early, Overtime, and workhour total.
4. Facility for input: Sick, asking for leave, etc. Also attendance correction.
5. Calculation Report period can be calculated freely from daily to monthly, detailed report, and summary report.
6. Calculation For Salary and formula, also can print employees salary receipt directly.
7. Facility for Customize Report Structure, Data Export, etc.
8. Log monitoring can be done by Real Time.
9. We also provide Free SDK (Software Development Kit), manual and source code samples for further application development.





The benefit of this device:

• TFT LCD Full Color 3 Inch, this luxury feature making its navigation and attendance proccess become more enjoyable becaue it is able to show Photos of Each Employees during attendance.
• USB Flash Disk, it is most convenient to be used in remote installation place, especially where it doesn't have computer
• Internal Litium Battery, this machine allready complated with internal litium battery, so can operate while power down.
• T9 Input, able to type employee's name directly from machine.
• Alarm Function, able to detecting unclosed door, door opened by force, login fail for several times, etc.
• Web Server, this feature will make the machine become flexible, because it can be remotely run by using Internet Explorer Browser, without any other applications.
• Schedule Bell, this future will allow us to set Alarm Bell during certain times, such as Check-in/Check-out, Break Time/Lunch Time, ETC.
• SMS Message, making it more interactive, administrator can send personal message to read at attenandce checking. When he/she make authentication at attenandce machine it will display special message on machine's LCD. For example : please come to HRD after lunch, or another important messages.
• Timezone Support, Akses Kontrol Pintu dengan Timezone (Pintu Dapat diakses oleh karyawan tertentu saja dan pada waktu tertentu saja juga)
• RJ45/UTP port placement is in back of it, therefore there will be none of cable that can be sighted after it installed.
